The M.4s® comfort is medi's rigid four-point knee brace: a light alloy frame down each side of the leg, hinges that copy the knee's own movement, and wedges that set how far the knee is allowed to straighten and bend.

It is for a knee that needs guiding and stabilising, or relieving in two directions: cruciate ligament ruptures and collateral ligament ruptures, treated with or without surgery, knee instability, meniscus procedures and cartilage surgery.

The four-point principle applies pressure at four places along the leg so the frame carries the joint rather than the soft tissue around it. Wedges change without screws, using tweezers built into the brace: extension can be set at 5 degrees of hyperextension, 0, 10, 20, 30 or 45 degrees, flexion from 0 up to 120 degrees, and immobilisation at 0 to 45 degrees; extension 0 and flexion 90 are fitted on delivery. The physioglide hinge follows the knee's rolling and gliding movement so the brace does not fight the joint. Two lengths are made, 41 cm and a 34 cm short version, each as a left or a right.

Is this the right one for you?

Choose this if a ligament is torn or has been repaired — the cruciate ligaments inside the knee, or the ones at the sides.

Knee gives way or shifts? medi Stabimed Knee Brace adds hinges for side-to-side stability.

Prescribed a brace after surgery? medi ROM Knee Splint holds the knee still or limits how far it bends.

Side
Size
Length

Size & Fit Guide

Pickup available at 7225 Woodbine Ave

Usually ready in 2-4 days

medi M.4s Comfort Knee Brace

Left / XS / Standard

7225 Woodbine Ave

Pickup available, usually ready in 2-4 days

7225 Woodbine Ave
Suite 104
Markham ON L3R 1A3
Canada

4168369978
  • 4-point stabilization principle with rigid frame
  • Adjustable range of motion via tool-free wedge set
  • 5° hyperextension wedge for controlled slight hyperextension
  • Physioglide hinge mimics the knee's rolling/gliding movement
  • Short version available for shorter legs
  • Avional (an aluminium alloy, used for the frame and hinges)
  • Velour
  • Polyester
  • Polyurethane foam
  • Cruciate ligament ruptures (conservative or post-operative)
  • Collateral ligament ruptures (conservative or post-operative)
  • Knee instability
  • Meniscus intervention
  • Cartilage surgery

This is a medical-grade orthopaedic brace that incorporates rigid structural support. Braces and orthoses built with rigid components are usually covered under Canadian extended health benefit plans (e.g. Sun Life, Manulife, Canada Life, Blue Cross, Green Shield Canada) when accompanied by a valid prescription from your physician or nurse practitioner. It may also qualify as an eligible medical expense under the CRA's Medical Expense Tax Credit. We're happy to prepare an itemized estimate for your insurer — use Get an Insurance Estimate for this item, or add several to your cart and request one for everything at once. No charge, and it's not an order. Coverage details, annual limits, and prescription requirements vary by plan, so please confirm your specific benefits with your provider and keep your prescription and itemized receipt for your claim.

  • Length is the brace itself, not a body measurement: Short is the same brace on a shorter frame, for a shorter leg. It does not change your size.

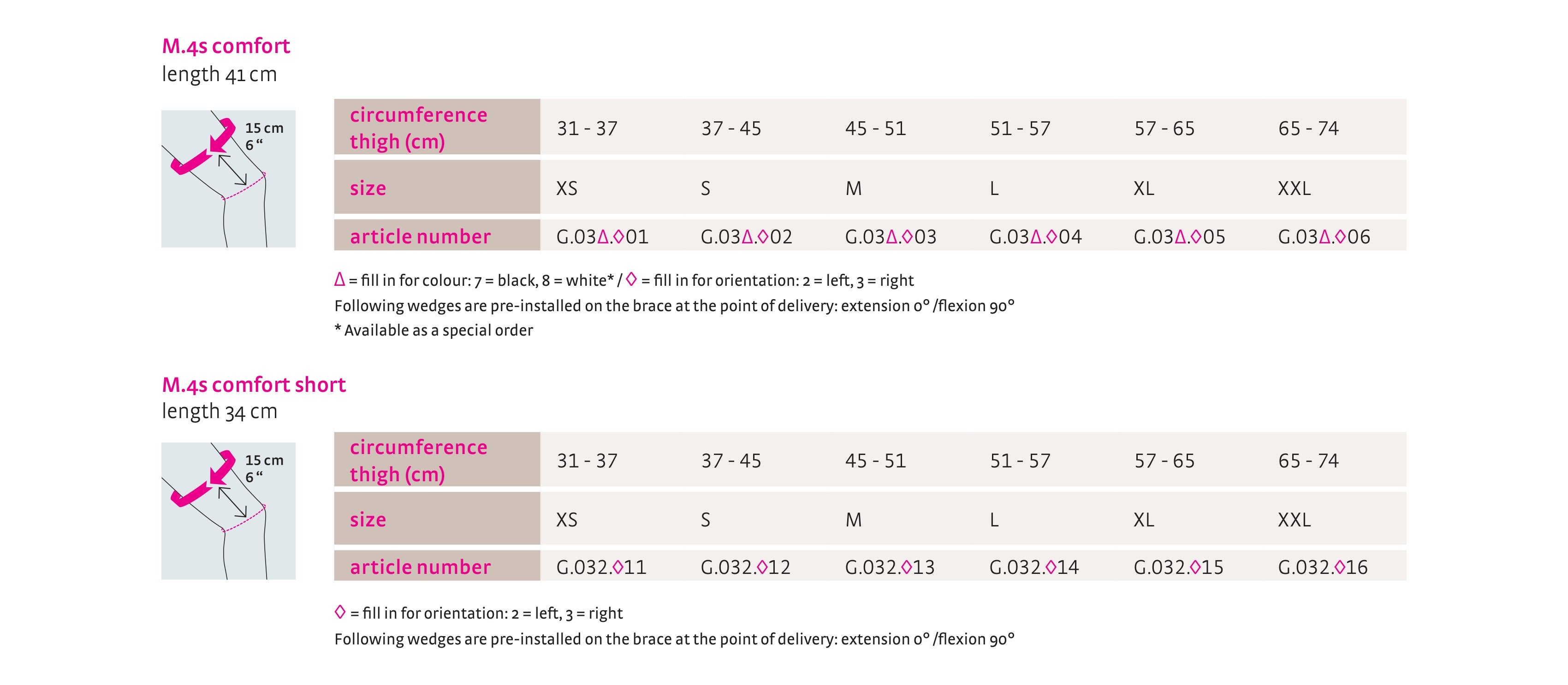

Check the size chart below. If your measurements don't fit a size on it, contact us and we'll help.

SizeXSSMLXLXXL
Thigh (cm)15 cm above the middle of the kneecap31 – 3737 – 4545 – 5151 – 5757 – 6565 – 74
  • Hand wash only, in lukewarm water (about 30°C/86°F) with a mild detergent
  • Close all hook-and-loop (velcro) fasteners, straps, and zippers before washing to protect the fabric
  • Do not use fabric softener, bleach, or harsh chemicals; do not dry clean
  • Remove and clean any removable pads or cushions separately with water or mild soap
  • Air dry fully -- do not tumble dry, use a hair dryer, or dry in direct sunlight
  • Apply skin creams or lotions after removing the support in the evening, not right before putting it on, since they can affect the material's properties

medi publishes these steps for putting the brace on. A rigid brace is normally set up by a fitter first; ask to be shown once before doing it alone.

  • Open all the straps, sit on the edge of a chair, pull the brace up the affected leg and bend the knee to about 45 degrees.
  • Position the hinges so the centre of each one, at the height of the extension wedges, is level with the top edge of the kneecap and slightly behind the side centre line of the leg, and check the brace is straight and not twisted.
  • Fasten the lower front calf strap, then the upper back thigh strap, keeping the knee bent and pushing both hinges towards the back of the leg.
  • Fasten the lower back thigh strap, checking the hinges have not moved in front of the midline of the leg.
  • Fasten the upper front calf strap, then the upper back calf strap, and last the front thigh strap.
  • Move the knee gently a few times, check the brace is still in place and correct it if it is not.
