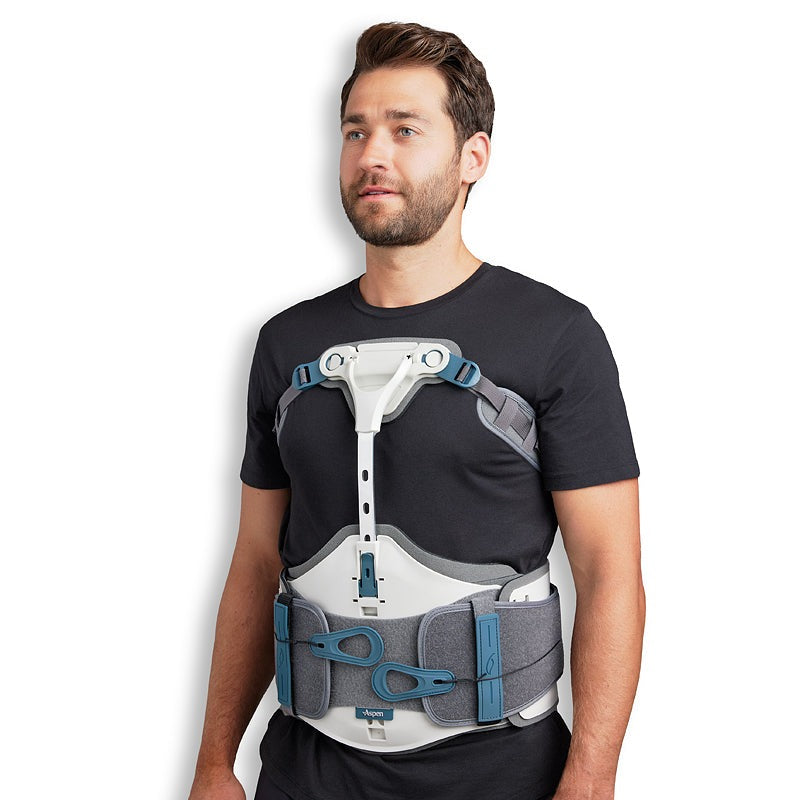

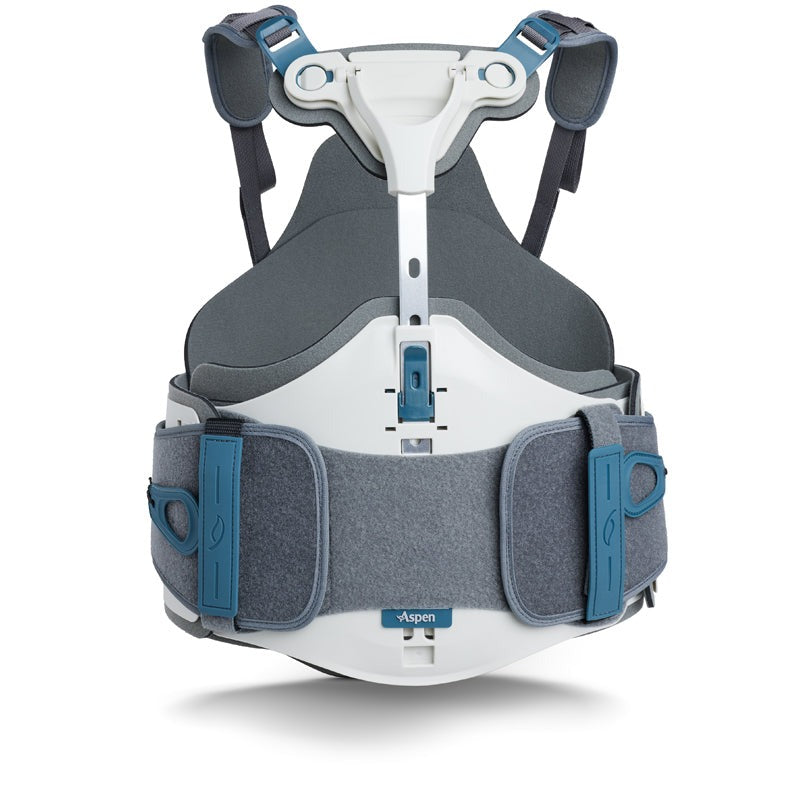

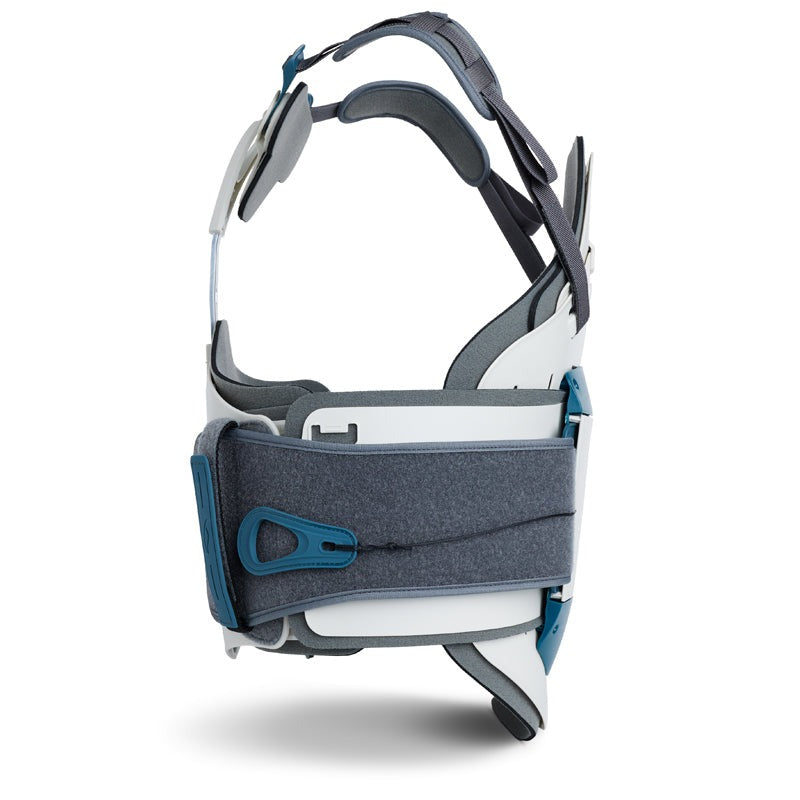

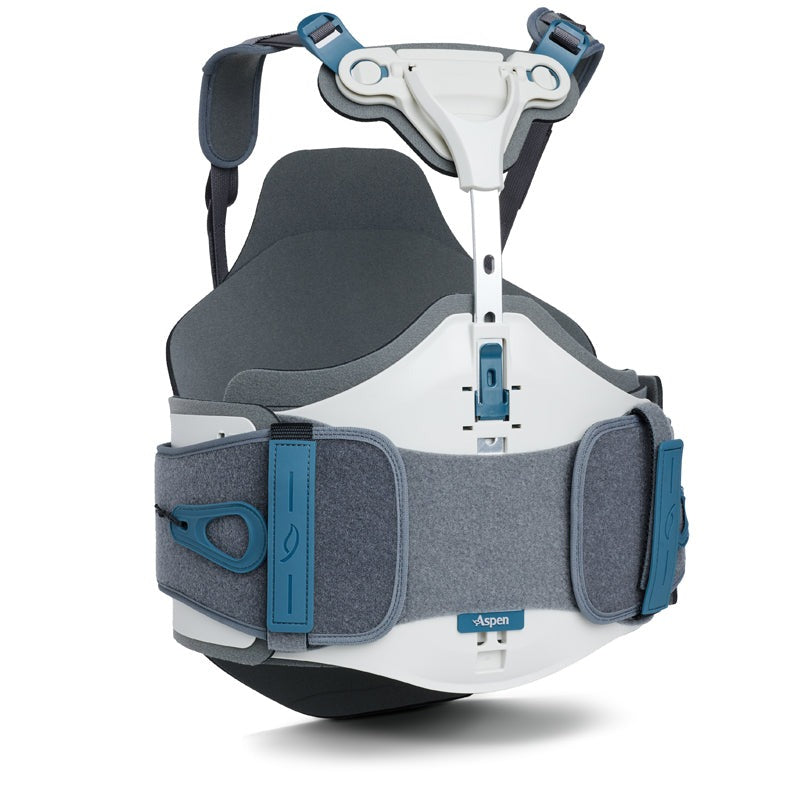

Aspen VRTX TLSO Back Brace

$910.00

The Aspen® VRTX™ TLSO carries the VRTX LSO's coverage further up the back, limiting movement of the thoracic and lumbar spine after surgery, a fracture or an injury. Like the LSO it is two shells that meet at the sides, so it can be applied to a patient lying down with less rolling.

What it adds is a sternal pad on an adjustable upright at the front, held by straps that clip to the side panels and can run under the arms or over the shoulders. The pad is set about two fingers' width below the sternal notch — the dip at the base of the throat — so the upper trunk is held as well as the lower back.

Side panels pull out to the midline from inside each shell, so three sizes cover a wide range of anatomies, and an upgrade kit turns the same brace into a CTLSO.

Is this the right one for you?

Choose this if you were prescribed a brace after surgery or an injury, rather than choosing one for everyday pain.

Everyday muscular back pain? Aspen Horizon PRO 637 LSO Back Brace is a lighter brace for strain and fatigue.

Chat with us for sizing help before you order
Free insurance estimate — right from your cart
Free shipping on your first size exchange

Pickup available at 7225 Woodbine Ave

Usually ready in 2-4 days

Thoracolumbar coverage with appropriate motion restriction
Bi-valved construction for fast, accurate application
Built-in extendable side panels fit a wide range of anatomies
Part of the modular VRTX family — steps up to a CTLSO

Nylon
Polycarbonate
ABS
HDPE
PVC
LDPE
EVA
Acetal
Aluminum
Polyester
Not made with natural rubber latex

Postoperative support
Degenerative disc disease
Bulging or herniated disc
Fracture management
Spondylolysis (a stress fracture in the bony arch of a vertebra)
Spondylolisthesis (one vertebra slipping forward over the one below it)
Spinal stenosis (narrowing of the spinal canal)
Kyphosis (forward rounding of the upper back)
Spondylosis (osteoarthritis / degenerative joint disease of the spine)

Not suitable for: hypersensitivity or allergy to any of the materials the brace is made from; swelling of the lymphatic tissue (the drainage network under the skin) caused by circulatory disorders; anyone whose clinician has told them not to wear a brace.

This is a medical-grade orthopaedic brace that incorporates rigid structural support. Braces and orthoses built with rigid components are usually covered under Canadian extended health benefit plans (e.g. Sun Life, Manulife, Canada Life, Blue Cross, Green Shield Canada) when accompanied by a valid prescription from your physician or nurse practitioner. It may also qualify as an eligible medical expense under the CRA's Medical Expense Tax Credit. We're happy to prepare an itemized estimate for your insurer — use Get an Insurance Estimate for this item, or add several to your cart and request one for everything at once. No charge, and it's not an order. Coverage details, annual limits, and prescription requirements vary by plan, so please confirm your specific benefits with your provider and keep your prescription and itemized receipt for your claim.

Check the size chart below. If your measurements don't fit a size on it, contact us and we'll help.

Size	XS	Standard	XL
Circumference (cm)	66 – 91.5	78.7 – 127	129.5 – 177.8

Aspen prints this as a circumference, in inches (26 – 36, 31 – 50, 51 – 70), without naming where it is taken; the brace wraps the waist and lower trunk.

The sizes overlap because the built-in side panels extend.

Hand wash only at 30 °C (86 °F)
Wash with mild detergent
Air dry
Do not use bleach or other chemicals

Aspen prints these steps for a clinician; the brace is normally applied with the patient lying down, and a first fitting should be supervised.

Take the brace out of its packaging and find the posterior (back) assembly.
Keeping the spine in neutral alignment and with proper support, log roll the patient onto their side and centre the back assembly on the back, then roll them back onto it.
Using the handles at each side, pull the rear side panels out until they stay centred on the patient, then lift the hook off the padding on both sides.
Centre the front panel on the patient, lift the securement latch on both sides so the front side panels move freely, and pull each one out to the side midline of the body.
Press the securement latches back down to lock the front panels at that width, then attach the back panel to the front panel one side at a time.
Pull the pull tabs out and away from the body until the fit is snug, then press them down onto the loop material at the front.
Extend the sternal pad by lifting its locking mechanism and sliding it up, so the top of the pad sits about two fingers' width below the sternal notch, then lock it.
Take the clip off the side panel and clip the strap to the sternal pad on each side, then tighten by pulling down. Accessory straps can run under the arms or over the shoulders instead.
To take the brace off, park the pull tabs on the side, unclip one strap from the sternal pad, release the belt hook on that side, and reverse the steps to put it back on.
