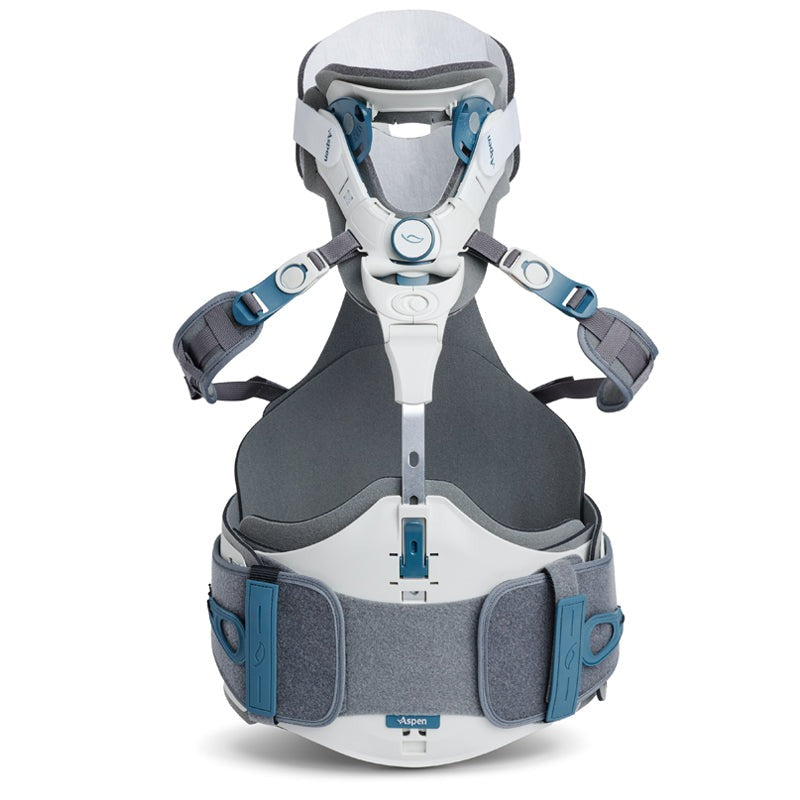

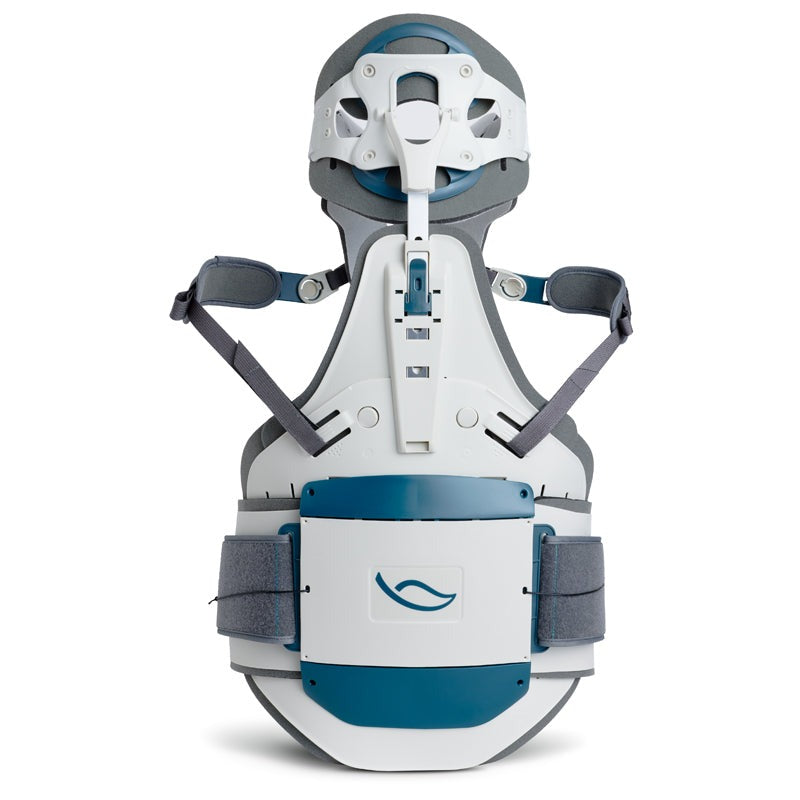

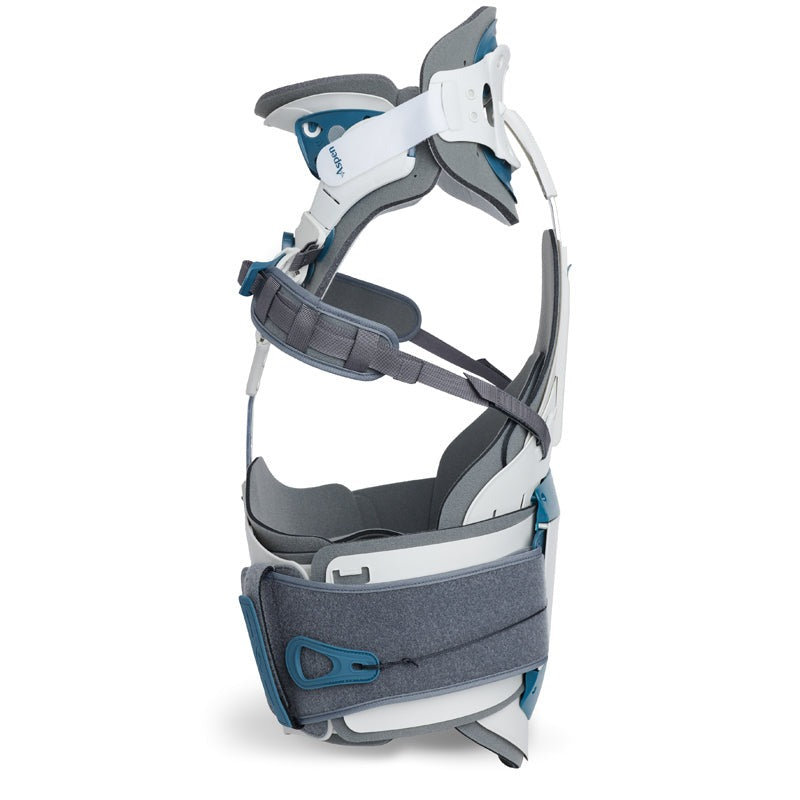

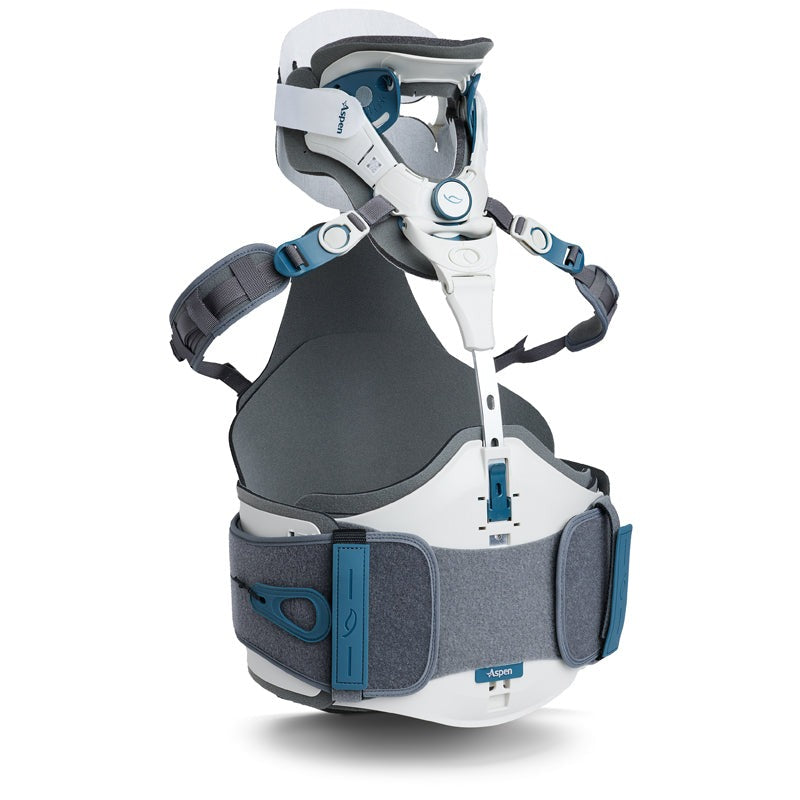

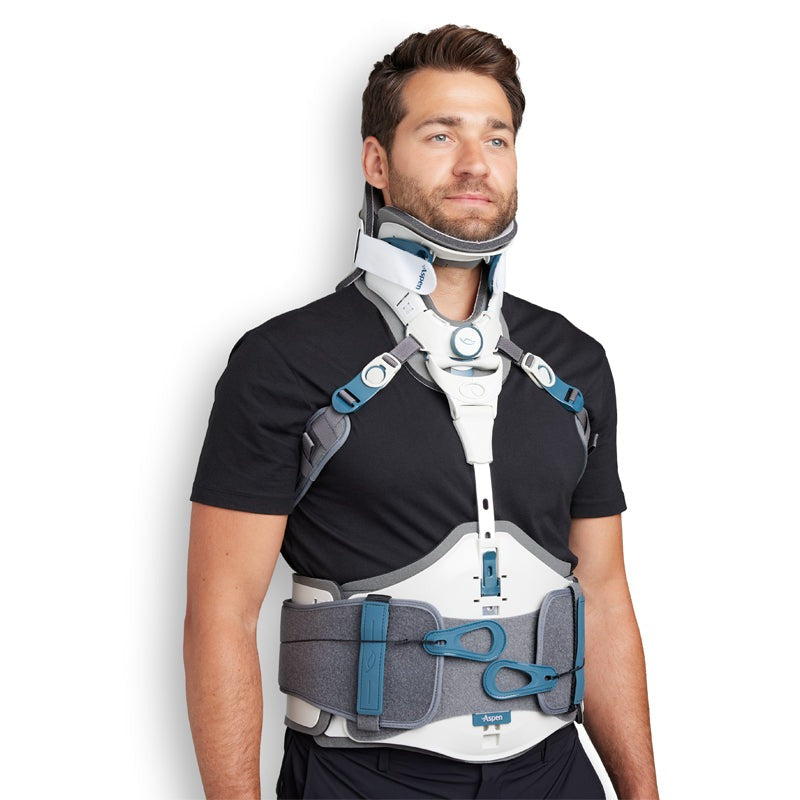

Aspen VRTX CTLSO Spinal Orthosis

$1,370.00

The Aspen® VRTX™ CTLSO braces the spine from the neck to the sacrum in one off-the-shelf brace, for injuries that need the whole column supported at once. It is built around the VRTX collar and a two-piece back-and-front TLSO shell, so it can be applied to a patient lying down with less rolling than a one-piece brace needs.

The front assembly sets to height and the yoke angle adjusts independently, so the collar, the chest support and the trunk shell are each fitted to the wearer. Side panels pull out to the midline of the body from within the shell, which is what lets three sizes cover a wide range of anatomies. As part of the modular VRTX system, the same components step down to a TLSO or LSO as recovery progresses.

Is this the right one for you?

Choose this if you were prescribed a brace after surgery or an injury, rather than choosing one for everyday pain.

Everyday muscular back pain? Aspen Horizon PRO 637 LSO Back Brace is a lighter brace for strain and fatigue.

Chat with us for sizing help before you order
Free insurance estimate — right from your cart
Free shipping on your first size exchange

Pickup available at 7225 Woodbine Ave

Usually ready in 2-4 days

Complete off-the-shelf cervical-to-sacrum stabilization
Bi-valved TLSO design simplifies application
Easy-to-adjust collar speeds up fitting
Modular VRTX family — components step up or down with care

Nylon
Polycarbonate
ABS
HDPE
PVC
LDPE
Acetal
Cotton
EVA
Polyurethane
Aluminum
Brass
Polyester
Not made with natural rubber latex

Postoperative support
Degenerative disc disease
Bulging or herniated disc
Fracture management
Spondylolysis (a stress fracture in the bony arch of a vertebra)
Spondylolisthesis (one vertebra slipping forward over the one below it)
Spinal stenosis (narrowing of the spinal canal)
Kyphosis (forward rounding of the upper back)
Spondylosis (osteoarthritis / degenerative joint disease of the spine)

Not suitable for: hypersensitivity or allergy to any of the materials the brace is made from; swelling of the lymphatic tissue (the drainage network under the skin) caused by circulatory disorders; anyone whose clinician has told them not to wear a brace.

This is a medical-grade orthopaedic brace that incorporates rigid structural support. Braces and orthoses built with rigid components are usually covered under Canadian extended health benefit plans (e.g. Sun Life, Manulife, Canada Life, Blue Cross, Green Shield Canada) when accompanied by a valid prescription from your physician or nurse practitioner. It may also qualify as an eligible medical expense under the CRA's Medical Expense Tax Credit. We're happy to prepare an itemized estimate for your insurer — use Get an Insurance Estimate for this item, or add several to your cart and request one for everything at once. No charge, and it's not an order. Coverage details, annual limits, and prescription requirements vary by plan, so please confirm your specific benefits with your provider and keep your prescription and itemized receipt for your claim.

Check the size chart below. If your measurements don't fit a size on it, contact us and we'll help.

Size	XS	Standard	XL
Chest circumference (cm)	66–9926 – 39 in	91–12436 – 49 in

Choose Standard for most adults; a clinician should confirm the fit for trauma applications.

Aspen publishes these figures in inches and pounds only; the metric ones are converted.

Hand wash only at 30 °C (86 °F)
Wash with mild detergent
Air dry
Do not use bleach or other chemicals

Aspen prints these steps for a clinician; the CTLSO is fitted by a trained fitter with the patient lying down.

Take the brace out of its packaging and find the posterior (back) assembly.
Keeping the spine in neutral alignment and with proper support, log roll the patient onto their side and centre the back assembly on the back.
Lift the locking mechanism to extend the rear collar section until it reaches the back of the head; bend the metal strut if needed to follow a rounded upper back. Log the patient back onto the panel.
Using the handles at each side, pull the rear side panels out so they stay centred, then lift the hook off the padding on both sides.
Centre the front panel, lift its locking mechanism and slide the pad to the right height, then lock it. Adjust the yoke angle and squeeze the yoke back together to hold it.
Fasten the hook-and-loop straps joining the front assembly to the collar, then pull the front side panels out to the side midline and press the securement latches down to lock them.
Clip the lateral panel straps into the collar on both sides and pull them gently downward for a snug fit under the arms.
Pull the pull tabs out to the fit you want and press them onto the loop material at the front. To remove, park the tabs at the side, unclip one CTLSO strap and its hook strap from the collar, and reverse the steps to put it back on.
