Aspen Vista 464 TLSO Back Brace

$960.00

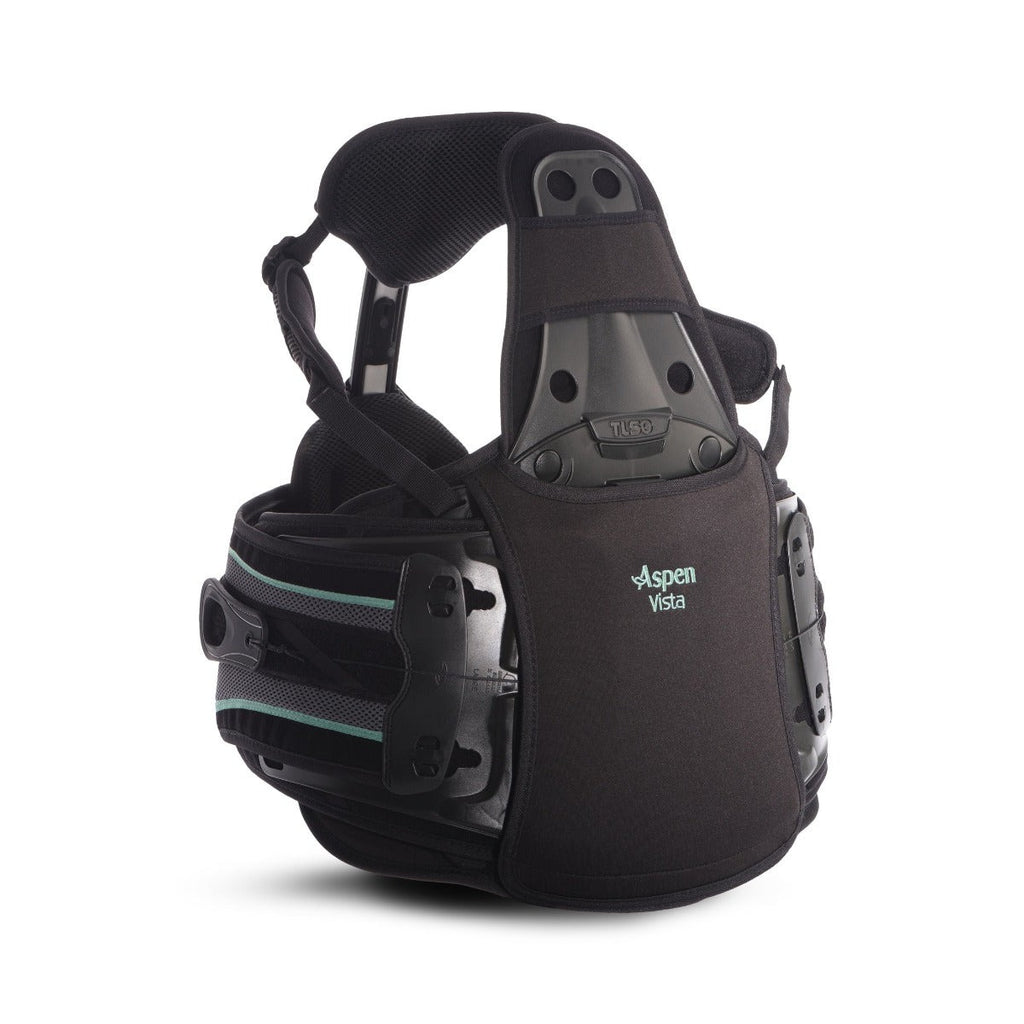

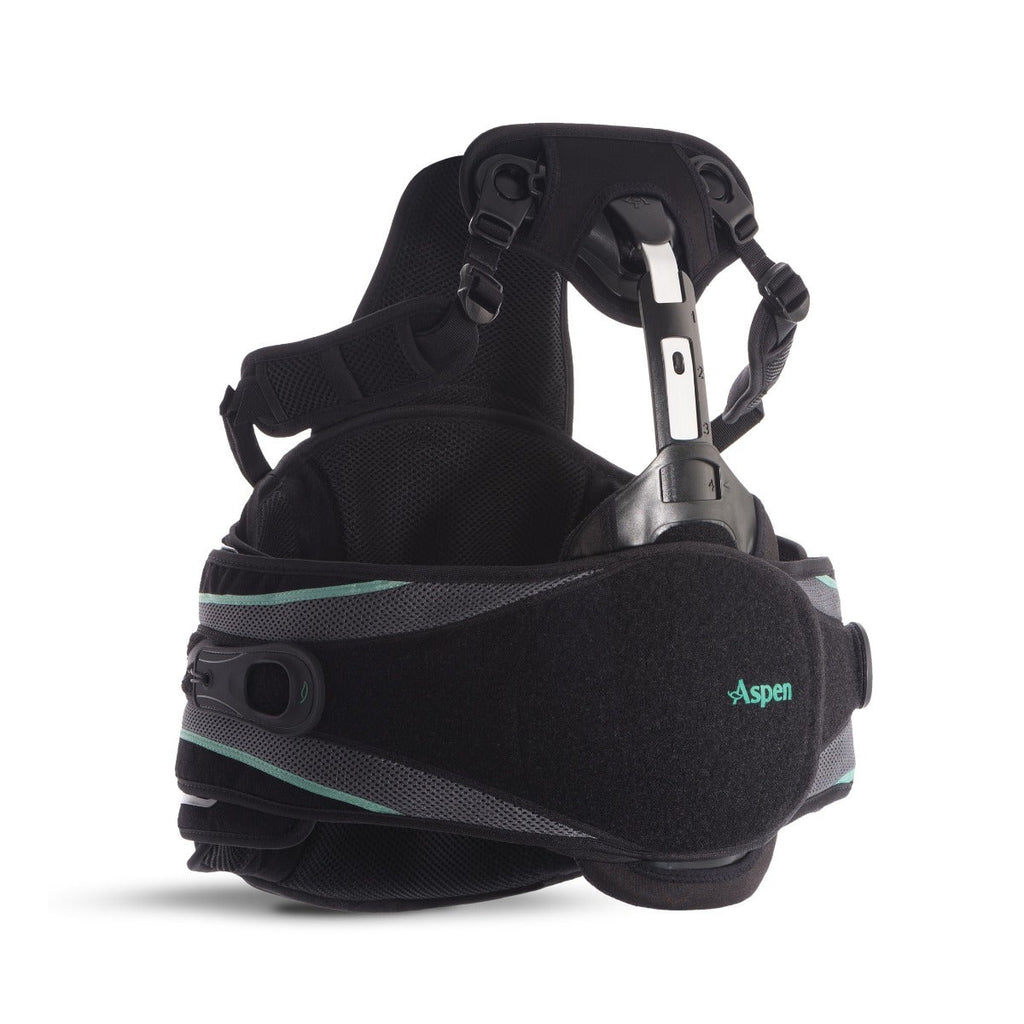

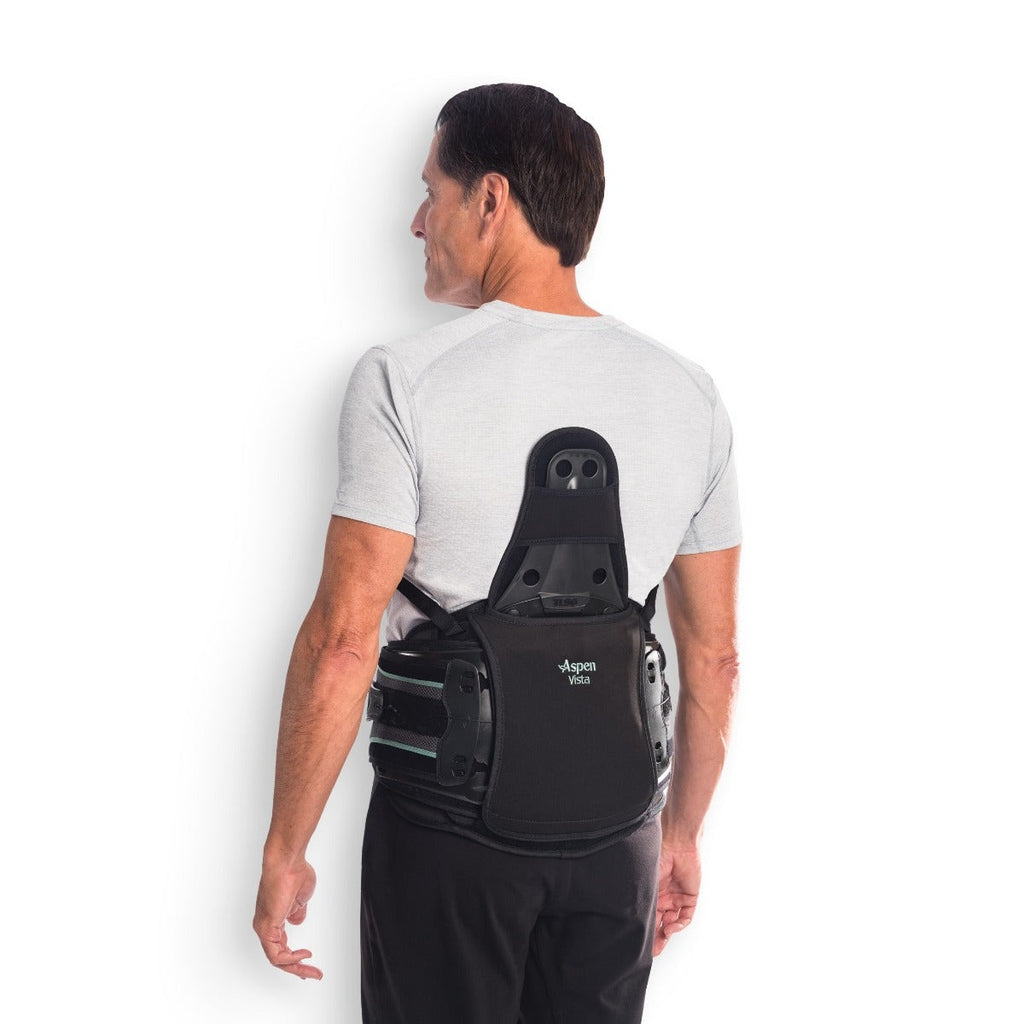

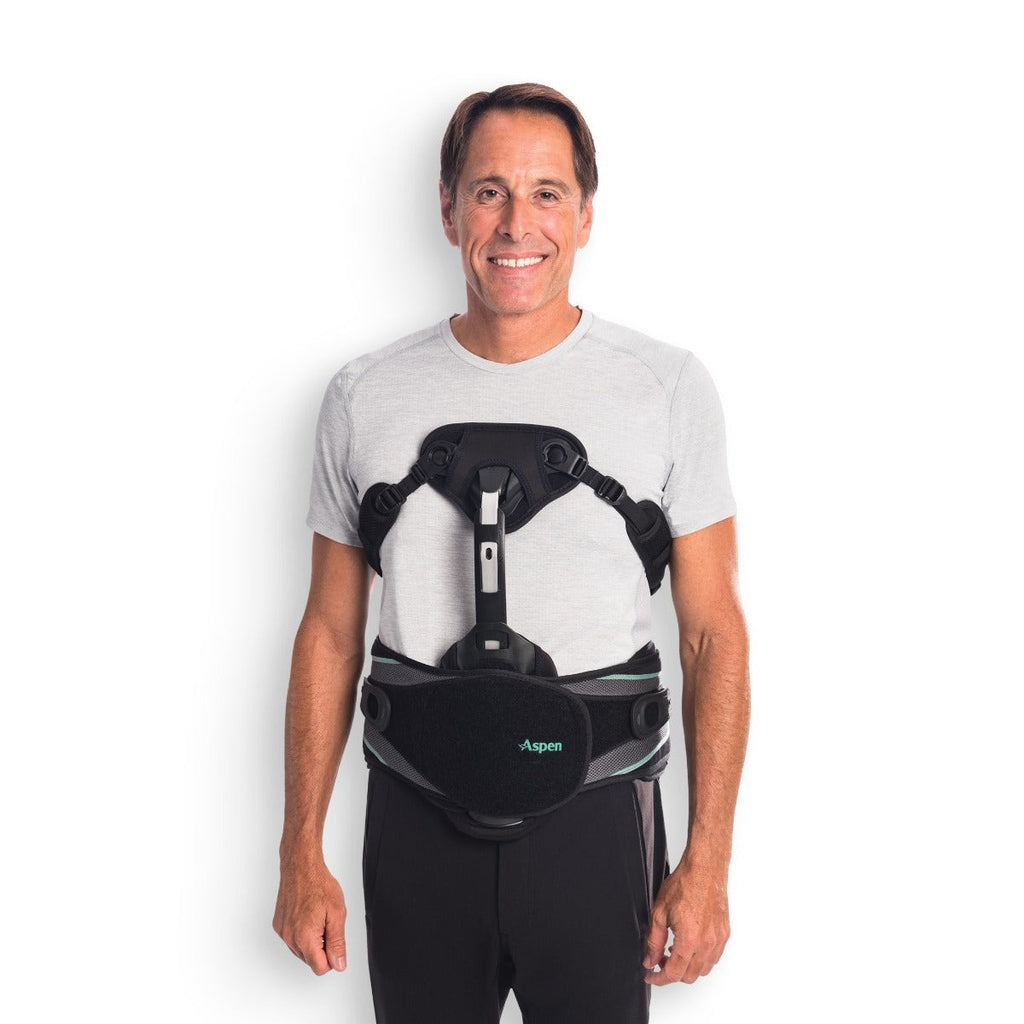

The Aspen® Vista® 464 TLSO supports the thoracic and lumbar spine after surgery, a fracture or an injury, using a belt at the waist plus an upright panel and a sternal pad that carry the support up the front of the chest.

Shoulder straps can be run in three configurations — under the arms, over the shoulders, or with buckles onto the back panel — so the brace can be set up for different builds and different tolerances. The sternal pad slides up and down on the abdominal panel, a bar extender adds height for taller wearers, and the panels can be trimmed by a fitter to sit at the midline.

One size covers the range, adjusted at the belt's own sizing rivets, and it steps down to the lower Vista lower-spine configurations as recovery progresses.

Is this the right one for you?

Choose this if you were prescribed a brace after surgery or an injury, rather than choosing one for everyday pain.

Everyday muscular back pain? Aspen Horizon PRO 637 LSO Back Brace is a lighter brace for strain and fatigue.

Chat with us for sizing help before you order
Free insurance estimate — right from your cart
Free shipping on your first size exchange

Pickup available at 7225 Woodbine Ave

Usually ready in 2-4 days

Three shoulder-strap configurations fit all body styles
Height-adjustment technology personalizes the fit
Steps down to other Vista lower-spine configurations
One-size adjustable — fits 26-60 in waists (to 70 in with extension panel)

Nylon
Polyester
HDPE
PVC
Polyurethane
UHMWPE
Aluminum
Not made with natural rubber latex

Postoperative support
Degenerative disc disease
Bulging or herniated disc
Fracture management
Spondylolysis (a stress fracture in the bony arch of a vertebra)
Spondylolisthesis (one vertebra slipping forward over the one below it)
Spinal stenosis (narrowing of the spinal canal)
Kyphosis (forward rounding of the upper back)
Spondylosis (osteoarthritis / degenerative joint disease of the spine)

Not suitable for: hypersensitivity or allergy to any of the materials the brace is made from; swelling of the lymphatic tissue (the drainage network under the skin) caused by circulatory disorders; anyone whose clinician has told them not to wear a brace.

This is a medical-grade orthopaedic brace that incorporates rigid structural support. Braces and orthoses built with rigid components are usually covered under Canadian extended health benefit plans (e.g. Sun Life, Manulife, Canada Life, Blue Cross, Green Shield Canada) when accompanied by a valid prescription from your physician or nurse practitioner. It may also qualify as an eligible medical expense under the CRA's Medical Expense Tax Credit. We're happy to prepare an itemized estimate for your insurer — use Get an Insurance Estimate for this item, or add several to your cart and request one for everything at once. No charge, and it's not an order. Coverage details, annual limits, and prescription requirements vary by plan, so please confirm your specific benefits with your provider and keep your prescription and itemized receipt for your claim.

Measure standing upright, breathing out gently, with the tape snug but not pulled tight.

Check the size chart below. If your measurements don't fit a size on it, contact us and we'll help.

Size	One Size
Waist circumference (cm)around the waist, level with the navel	66–15226 – 60 in

One size adjustable. With the Universal Extension Panel it fits waists up to 70 in (178 cm).

Aspen publishes these figures in inches and pounds only; the metric ones are converted.

Hand wash only at 30 °C (86 °F)
Wash with mild detergent
Air dry
Do not use bleach or other chemicals

Aspen prints these steps; the first fitting of a post-surgical brace should be supervised by your clinician.

Set the belt size first: push the male rivets on the belt through the right adjustment holes in the sizing mechanism. For smaller sizes, slide the side panel through the sizing slot and fit the rivets from underneath.
Pull the belt taut so the rivets lock in place.
Centre the back panel as low as it will comfortably sit, then slide the abdominal panel and sternal pad sideways so both sit at the midline of the body.
For a taller wearer, add the bar extender to the abdominal panel sheath: pry the button back and slide the aluminium strut until the button locks in the right hole.
Set the sternal pad height by pressing the button marked with the leaf logo inward and raising or lowering the pad.
Pull the tabs strongly away from the body — tighter than you need, then ease off to the right fit. The left tab tightens the lower part, the right the upper.
Attach the underarm control straps to the sternal pad and pull them to tighten, so the straps and pad sit securely. They can be repositioned over the shoulders instead, with buckles onto the top of the back panel.
